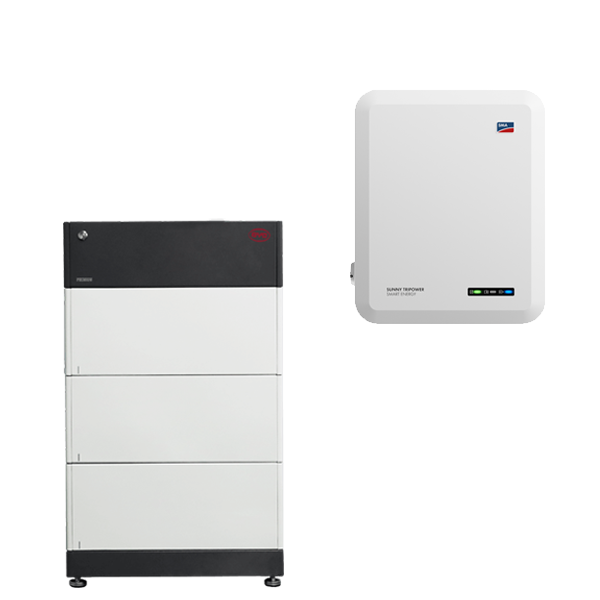

BYD Battery-Box Premium HVS 7.7 with SMA Hybrid STP 10.0 SE

SMA Hybrid STP 10.0 SE with BYD Battery-Box Premium HVS 7.7 storage package

Eligibility requirements: The Clean Deals offer is only valid for orders with a goods issue date no later than December 15, 2023

The SMA hybrid inverter has an integrated switching device for backup power. Selected loads can be connected to the backup power output, which are supplied with backup power in the event of a grid failure. You can use the Sunny Home Manager 2.0 to connect the system intelligently to a heat pump or wallbox. The Sunny Home Manager 2.0 also enables forecast-based charging and discharging of the battery. This means that the 70% feed-in rule can be elegantly implemented by not fully charging the storage system in the morning but only during the midday peak. The usable storage capacity for this storage package can be extended to 12.8 kWh.

Advantages BYD Battery-Box Premium HVS 7.7

• Usable capacity: 7.68
• The storage package can be expanded up to 12.8 kWh. This requires the BYD HVS battery modules.
• The patented modular plug-in design requires no internal cabling and allows maximum flexibility and ease of use
• Highest safety standards such as VDE 2510-50
• Powerful emergency power functionality

Advantages SMA Hybrid STP 10.0 SE

• Mains connection: 3-phase
• AC rated power: 10 kVA
• Integrated switching device for backup power
• Max. power in emergency power mode: 12 kVA (max. 10 s)
• Also stores the energy from other PV inverters or a CHP unit
• Incl. 3 m battery cable and MC4 plugs
• Compatible with SMA Energy App, 360° App and Sunny Portal
• AC and DC overvoltage protection type 2 integrated
• Typical noise emissions: 30 dB (A)
• Protection category: IP 65
• Dimensions: 598 x 500 x 173 mm (H x W x D)
• Weight: 30.0 kg
• Warranty: 5 years (free extension to 10 years with online registration in the SMA Portal)

Included in the package

• BYD Battery-Box Premium HVS 7.7
• SMA Hybrid STP 10.0 SE
