BYD BATTERY-BOX PREMIUM HVS 7.7 + Sungrow Hybrid HV SH10RT-20 V11

BYD Premium HVS 7.7 with Sungrow SH10RT-20 V11 power bundle

These new three-phase hybrid inverters have a three-phase emergency power output with three-phase current with 100% unbalanced load capability. Together with the high-voltage battery connection and 2 independent MPP trackers, the Sungrow inverter leaves no wishes unfulfilled. Currently, it is configured via iSolarCloudAssistant and sends its data to the free iSolarCloud portal or iSolarCloud app via the integrated Wi-Fi or Ethernet interfaces. RS485 (Modbus RTU) and Ethernet (Modbus TCP) can be used to connect third-party data loggers. A 3-phase smart meter is already included.

Based on our current knowledge, we cannot recommend the combination of Sungrow inverters and optimizers from SolarEdge and Tigo.

If PV modules with currents greater than 13.5 A are used, the inverter may slightly down-regulate on a few peak days a year!

Product advantages of the BYD Premium HVS:

• Award-winning efficiency thanks to genuine series connection
• The patented modular plug-in design requires no internal cabling and allows maximum flexibility and ease of use
• Cobalt-free lithium iron phosphate battery (LFP): Maximum safety, service life and performance
• Compatible with leading 1- and 3-phase inverters
• Highest safety standards such as VDE 2510-50
• Powerful emergency/back-up power and off-grid functionality

Advantages Sungrow of the SH10RT-20 V11:

• Input voltage range from 150-1000V
• High efficiency of up to 98.0 %
• Natural convection
• AC + DC overvoltage protection 2 integrated
• External connections, no need to open the inverter
• Integrated spirit level
• SG-Ready contact available (for controlling e.g. heat pump)
• Noise emission 30dB (A)

Product features of the BYD Premium HVS:

• Usable battery capacity: 7.68 kWh
• Lithium iron phosphate technology (LFP)
• Nominal voltage: 307 V
• Max. output current: 25 A
• 50 A for 5 seconds
• 129 kg
• IP55
• Dimensions: 945 x 585 x 298 mm (H x W x D)
• On- and off-grid capability

Product features Sungrow SH10RT-20 V11:

• 10.0 kVA 3-phase power
• approx. 7.7 kW max. charging / discharging power battery
• 2 MPP trackers 150-1000 V, at rated power 210-850V
• 1 MC4 inputs per MPPT
• Battery connection
• Wi-Fi adapter already included in the scope of delivery
• Ethernet interface
• Cable cross-section AC connection 6 – 10mm² possible
• Cable cross-section DC connection 4 – 6 mm² possible
• Integrated reverse polarity protection
• 3-phase smart meter included
• Dimensions: 540 x 460 x 170 mm (WxHxD)
• IP65
• Weight: 26 kg

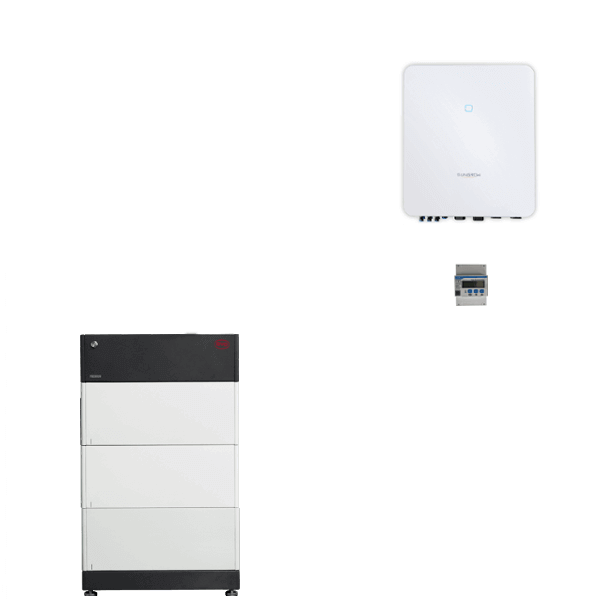

Included in the package

• BYD Battery Box Premium HVS 7.7
• Sungrow SH10RT-20 V11
• Chint DTU666-20 Smart Meter

If you're looking for emergency power, you've come to the right place! Compact dimensions and low weight with full power – installed faster than any other.
