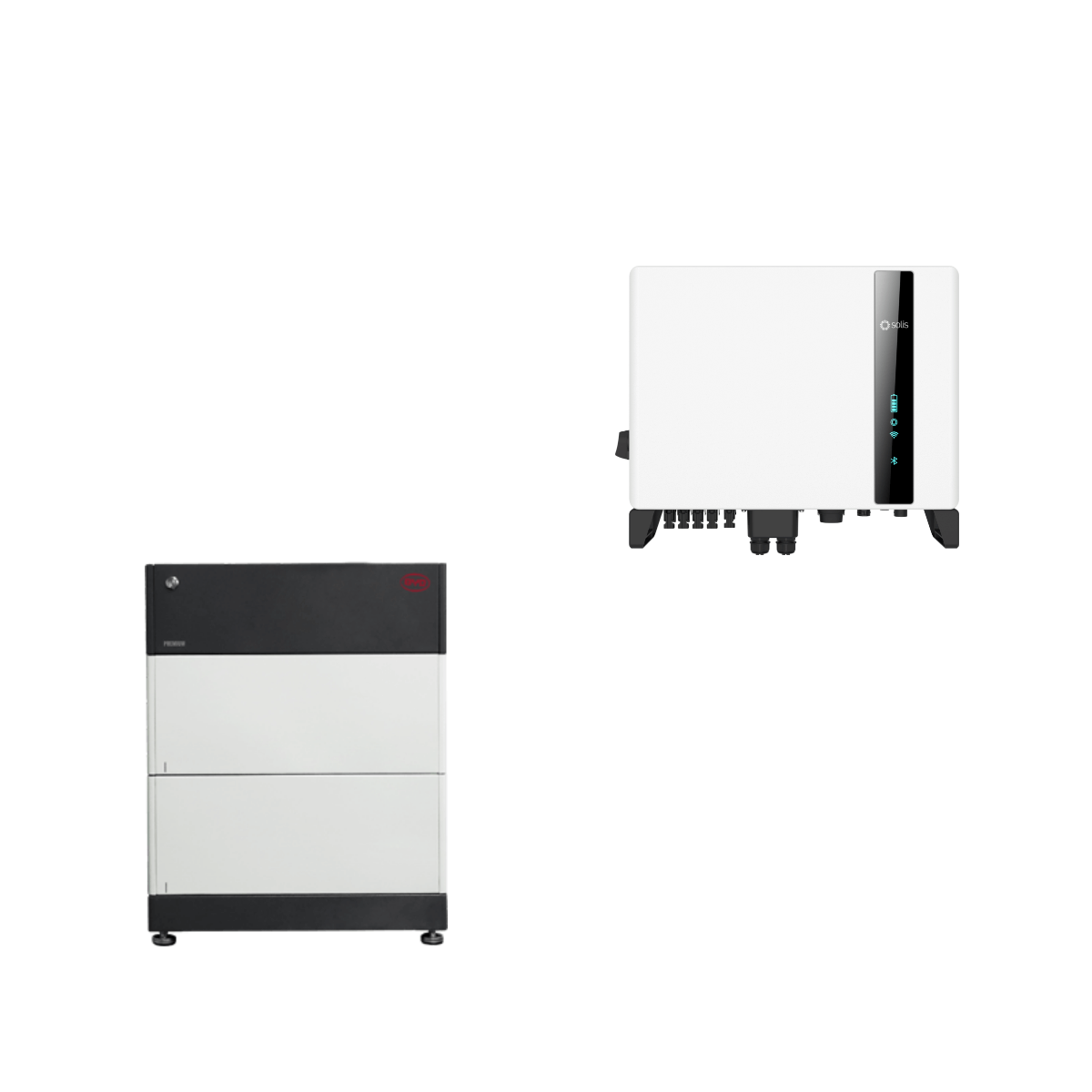

BYD Battery-Box Premium HVS 5.1 with Solis S6 3P-Hybrid – 5 kW

The Solis S6 3P Hybrid - 5 kW with the BYD Battery-Box Premium HVS 5.1 in the storage package

Certification for the Solis inverter for Austria expected by the end of 2022!

The Solis hybrid inverter offers with its 3 MPPT flexibility in module design. With its high input current, it is compatible with modern high power modules. An integrated switching device for backup power is built into the Solis Hybrid Inverter. This allows selected loads to continue to be supplied with backup power in the event of a grid failure. The hybrid inverter is capable of solar recharging and has black start capability. The usable storage capacity is expandable up to 12.8 kWh for this storage package.

Advantages BYD Battery-Box Premium HVS 5.1

• Usable capacity 5.12 kWh
• The storage package can be expanded up to 12.8 kWh. This requires the BYD HVS battery modules.
• Patented modular plug-in design requires no internal wiring and allows maximum flexibility and ease of use
• Highest safety standards such as VDE 2510-50
• High performance emergency power functionality

Advantages Solis S6 3P-Hybrid – 5 kW

• Mains connection: 3-phase
• AC power: 5 kVA
• 5.0 kW emergency power via separate output
• MPP tracker: 3 with 1 string output each
• Max. short circuit current per MPPT: 24 A
• Max. input current: 16 A
• Communication: CAN, RS485, Wi-Fi
• Incl. 1 m battery cable with MC4 connectors
• 3-phase smart meter with 3 current transformers
• Protection category: IP66
• Dimensions: 496 x 596 x 230 mm (HxWxD)
• Weight: 31.8 kg
• Warranty: 5 years

Included in the package:

• BYD Battery-Box Premium HVS 5.1
• Solis S6 3P-Hybrid – 5 kW
