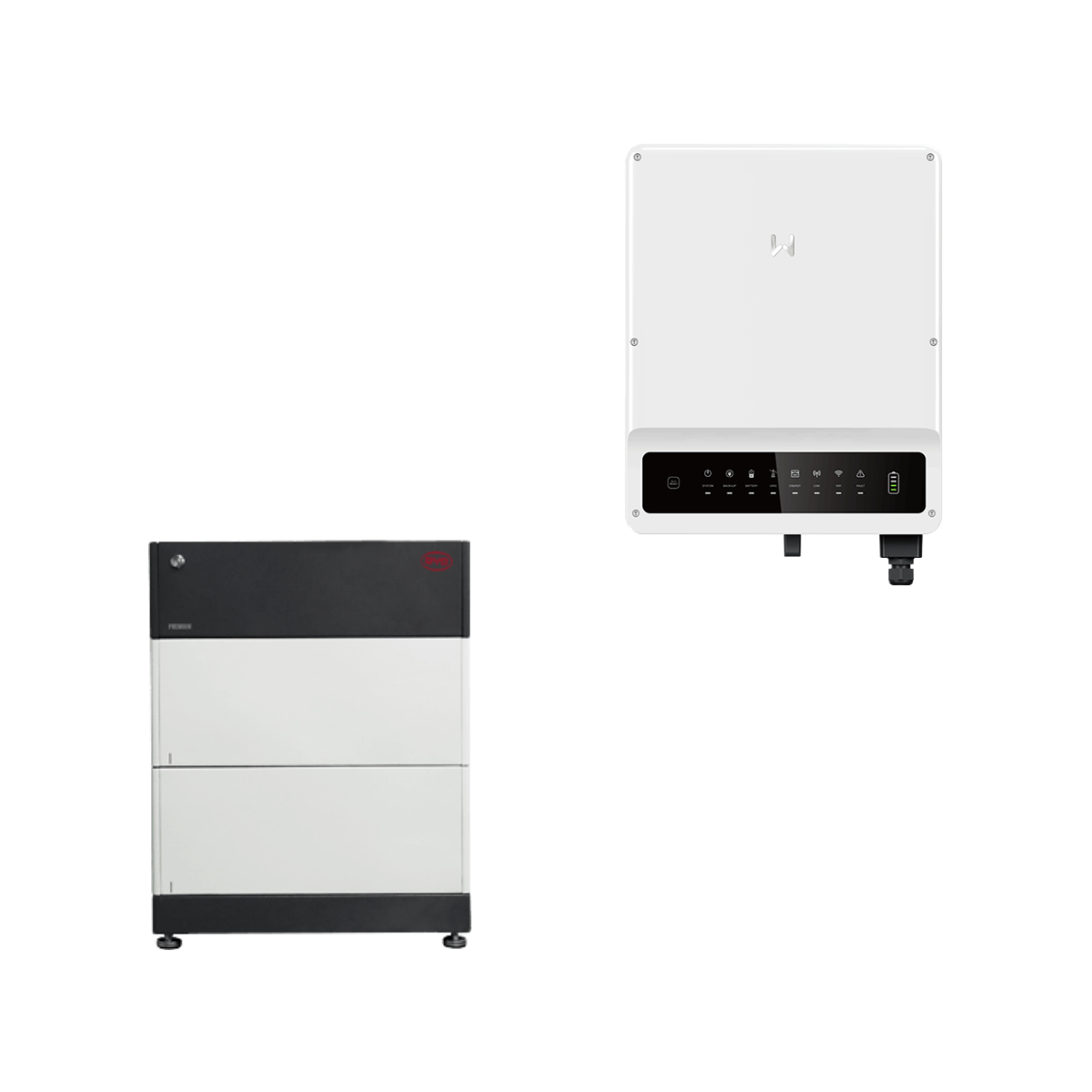

BYD Battery Box Premium HVS 5.1 with GoodWe ET Plus 16A – GW6.5KN-ET
| Art. Nr.: | 9042 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Inverter: | GW6.5KN-ET |
| Net capacity: | 5.12 kWh |
| Package type: | 3-phase, High voltage battery, Solar battery packages, Solar battery retrofit |
| Phases: | 3 |
| Solar battery: | BYD Battery-Box Premium HVS 5.1 |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
9042
Description
The BYD Battery-Box Premium HVS 5.1 with the GoodWe ET Plus 16A – GW6.5KN-ET storage package
The GoodWe ET Plus 16A series is perfectly suited for the residential sector. In combination with the BYD HVS, the self-consumption and thus the energy self-sufficiency is increased. Each battery can also deliver the nominal capacity as power. Thanks to the high battery charging currents, the GoodWe ET can utilize the high battery power. In case of grid failure, the hybrid inverter can continue to provide emergency power to selected loads. In addition, the hybrid inverter is capable of black-starting and solar recharging.
Package advantages
- 3-phase smart meter already included in the ET Plus 16A series
- Integrated switch-over device for backup power in the hybrid inverter
- High battery safety standard VDE 2510-50
- Retrofitting of the battery modules for an unlimited period of time
- Patented modular plug-in design requires no internal wiring and allows maximum flexibility and ease of use
Product features BYD Battery-Box Premium HVS 5.1
- Usable capacity: 5.12 kWh
- Max. output current: 25 A
- Nominal voltage: 204.8 V
- Protection category: IP55
- Dimensions: 762 x 585 x 298 mm (H x W x D)
- Weight: 91 kg
Product features GoodWe ET Plus 16A – GW6.5KN-ET
- Mains connection: 3-phase
- AC power: 6.5 kVA
- 6.5 kW emergency power output via separate output
- MPP tracker: 2
- String connections per MPPT: 1
- Max. input current per MPPT: 16 A
- Max. short circuit current per MPPT: 21.2 A
- Communications: RS485, Wi-Fi (optional LAN)
- Potential-free contact available (programmable via PV-Master APP) (SG-Ready)
- Push-in terminals for the communication interfaces simplify installation
- Wi-Fi module included
- Dimensions: 516 x 415 x 180 mm (HxWxD)
- Protection category: IP66
- Weight: 24.0 kg
Included in the package
- BYD Battery-Box Premium HVS 5.1 consisting of 1 BCU and 2 battery modules
- GoodWe ET Plus 16A – GW6.5KN-ET including 3-phase smart meter
