BYD Battery Box Premium HVS 5.1 high-volt with Fronius Primo Gen24 3.6 Plus

Fronius' vision of "24 hours of sun" begins here:

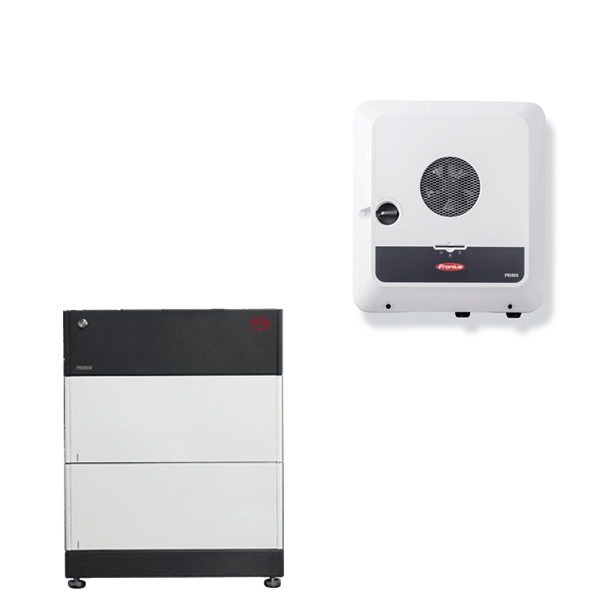

BYD Battery Box Premium HVS 5.1 & Fronius Primo Gen24 3.6 Plus

Long awaited and now within reach - the new Gen24 series hybrid inverters from Fronius. Both in Primo and Symo version equipped with numerous state-of-the-art features. These range from a complete range of communication interfaces to flexible emergency / backup power functions. The new HVS/HVM series from BYD can be connected via the powerful battery connection. These new high-voltage series are the ideal combination for the Generation 24 from Fronius.

Package advantages:

• Highly efficient DC coupled hybrid system
• Fronius PV Point and standby power capability
• Indefinite retrofitting of battery possible
• Self-supporting BYD stacking concept (up to 5 battery elements and 3 units)
• Patented, wireless plugging system from BYD

Product features of BYD Battery Box Premium HVS 5.1

• Available capacity: 5.12 kWh
• Cell technology: lithium iron phosphate technology (LFP)
• Dimensions: 712 x 585 x 298 mm (H/W/D)
• Weight: 91 kg
• Protection class: IP 55
• Warranty: 10 years
• Application: on/off-grid, backup

Product features of Fronius Primo Gen24 3.6 Plus

• Mains supply: 1-phase
• AC power: 3.6 kVA
• without transformer
• MPP trackers: 2
• Communication: integrated data logger with web server, 2 x Ethernet, WLAN, RS485, 6 x digital IN/OUT, 6 x digital IN (RRCR)
• Active cooling
• Dimensions 528 x 474 x 163 mm (HxWxD)
• Weight: 16.6 kg
• Protection class: IP 66
• Warranty: 5 years

Package contents:

• BYD Battery Box Premium HVS 5.1
• Fronius Primo Gen24 3.6 Plus

Necessary accessories: Fronius Smart Meter 63A (must be separately selected, if necessary)
