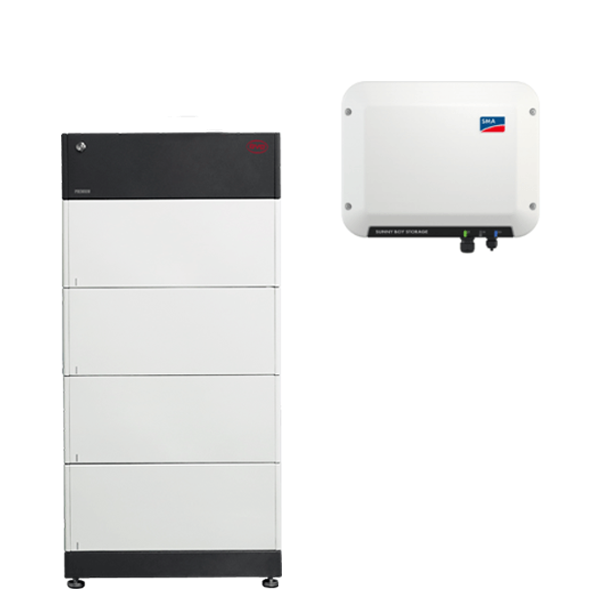

BYD BATTERY-BOX PREMIUM HVS 10.2 with SMA SBS 2.5
| Art. Nr.: | 4781 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Inverter: | SMA Sunny Boy Storage 2.5 |
| Net capacity: | 10.24 kWh |
| Package type: | 1-phase, High voltage battery, Solar battery packages, Solar battery retrofit |
| Phases: | 1 |
| Solar battery: | BYD Battery-Box Premium HVS 10.2 |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
4781
Description
BYD B-Box HVS + SMA Sunny Boy Storage 2.5
The new system generation is based on the known storage systems and has all previous functions. With the Battery-Box Premium HVS, a battery module with higher storage capacities than its predecessor is launched in the market. Through the further development of cell technology, the system weight could be reduced by almost 30%. The overall depth was also reduced by 8 cm. This means that less floor space is required. At the same time the new devices have a slimmer appearance. One of the highlights: the new storage systems come with “protection class IP55”. This enables the use also in outdoor areas.
Advantages of BYD B-Box HVS
- Award-winning efficiency - thanks to true series connection
- Patented modular connector design requires no internal cabling and provides maximum flexibility and ease of use
- Cobalt-free lithium iron phosphate battery (LFP): Maximum safety, durability and performance
- Compatible with leading 1 and 3-phase inverters
- Highest safety standards such as VDE 2510-50
- Powerful emergency/standby power and off-grid functionality
Product features of BYD B-Box HVS
- Available battery capacity: 10.24 kWh
- Lithium iron phosphate technology (LFP)
- Nominal voltage: 409 V
- Max. output current: 25 A
- Peak output current: 50 A for 5 seconds
- Protection class: IP55
- Weight: 167 kg
- Dimensions: 1178 x 585 x 298 mm (H/W/D)
Advantages of SMA Sunny Boy Storage 2.5
- High-volt battery inverter
- Reduction in installation costs
- WLAN and web-based user interface for the configuration
- AC system for new installation and retrofitting
- Can also be used flexibly with non-SMA inverters - thanks to an additional SMA Energy Meter
- Quality - Made in Germany
Product features of SMA Sunny Boy Storage 2.5
- System power: 2.5 kW, 1-phase AC coupled
- WLAN und Speedwire integrated
- Protection class: IP 65
- Weight: 9.2 kg
- Dimensions: 450 x 357 x 122 mm
- Product warranty: 10 years
Package contents:
- BYD Battery Box Premium HVS 10.2
- SMA Sunny Boy Storage 2.5
