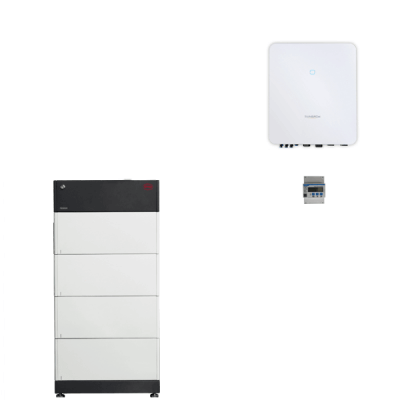

BYD BATTERY-BOX PREMIUM HVS 10.2 + Sungrow Hybrid HV SH5.0RT V112
| Art. Nr.: | 8429 |
|---|---|
| Accessoires: | Smart Meter |
| Battery type: | High volt lithium-iron-phosphate |
| Inverter: | Sungrow SH5.0RT-V112 |
| Net capacity: | 10.24 kWh |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | BYD Battery Box PREMIUM HVS 10.2 |
| WEEE-Number: |
|
- New
-
-
{ "id": "342cc0a52ce1568f81f190db9fde99d1", "item_brand": "", "item_name": "Sungrow EV Charger 11 kW", "item_id": "7721", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "342cc0a52ce1568f81f190db9fde99d1", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
BYD Premium HVS 10.2 with Sungrow SH5.0RT-V112 power bundle
These new three-phase hybrid inverters have a three-phase emergency power output with three-phase current with 100% unbalanced load capability. Together with the high-voltage battery connection and 2 independent MPP trackers, the Sungrow inverter leaves no wishes unfulfilled. Currently, it is configured via iSolarCloudAssistant and sends its data to the free iSolarCloud portal or iSolarCloud app via the integrated Wi-Fi or Ethernet interfaces. RS485 (Modbus RTU) and Ethernet (Modbus TCP) can be used to connect third-party data loggers. A 3-phase smart meter is already included.
The firmware of version V112 does not currently support the Sungrow EV charger and the 2CT meter. Mixing systems from versions V11 & V112 should be avoided. The update for compatibility is scheduled for Q1 2023!
Based on our current knowledge, we cannot recommend the combination of Sungrow inverters and optimizers from SolarEdge and Tigo.
If PV modules with currents greater than 12.5 A are used, the inverter may slightly down-regulate on a few peak days a year!
Product advantages BYD Premium HVS:
- Award-winning efficiency thanks to genuine series connection
- The patented modular plug-in design requires no internal cabling and allows maximum flexibility and ease of use
- Cobalt-free lithium iron phosphate battery (LFP): Maximum safety, service life and performance
- Compatible with leading 1- and 3-phase inverters
- Highest safety standards such as VDE 2510-50
- Powerful emergency/back-up power and off-grid functionality
Advantages Sungrow SH5.0RT-V112
- Input voltage range from 150-1000V
- High efficiency of up to 98.0 %
- Natural convection
- AC + DC overvoltage protection 2 integrated
- External connections, no need to open the inverter
- Integrated spirit level
- SG-Ready contact available (for controlling e.g. heat pump)
- Noise emission 30dB (A)
Product features BYD Premium HVS:
- Usable battery capacity: 10.24 kWh
- Lithium iron phosphate technology (LFP)
- 409 V nominal voltage
- 25 A max. output current
- 50 A for 5 seconds
- Weight: 167 kg
- IP55
- Dimensions: 1178 x 585 x 298 mm (H x W x D)
- On- and off-grid capability
Product features Sungrow SH5.0RT-V112
- 5.0 kVA Power 3-phase
- approx. 10.3 kW max. charging / discharging power battery
- 2 MPP trackers 150-1000 V, at rated power 210-850V
- 1 MC4 inputs per MPPT
- Battery connection
- Wi-Fi adapter already included in the scope of delivery
- Ethernet interface
- Cable cross-section AC connection 6 – 10mm² possible
- Cable cross-section DC connection 4 – 6 mm² possible
- Integrated reverse polarity protection
- 3-phase smart meter included
- Dimensions: 540x460x170 mm (WxHxD)
- IP65
- Weight: 26 kg
Included in the package
- BYD Battery Box Premium HVS 10.2
- Sungrow SH5.0RT-V112
- Chint DTU666 Smart Meter 3-phase direct measurement 80A
If you're looking for emergency power, you've come to the right place! Compact dimensions and low weight with full power – installed faster than any other.
-
