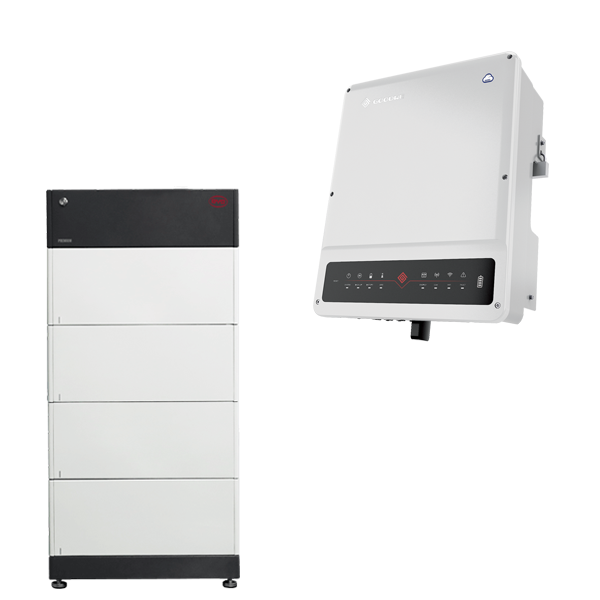

BYD Battery Box Premium HVS 10.2 high voltage with GoodWe ET Plus – GW8K-ET

The BYD Battery-Box Premium HVS 10.2 with GoodWe ET Plus – GW8K-ET storage package

Flexible and scalable. With the BYD Battery-Box Premium, up to three battery towers can be connected to form a system. When it comes to charging and discharging power, however, BYD is remaining true to itself. Each battery can also deliver the nominal capacity as power. This makes the series ideally suited for on-grid, on-grid plus backup and off-grid systems.

Thanks to the high battery charging currents, the GoodWe ET Plus can utilize the high battery power and also provides a 3-phase emergency power connection.

Product features BYD Battery-Box Premium HVS 10.2

• Usable capacity: 10.24 kWh
• Award-winning efficiency thanks to true series connection
• Patented modular plug-in design requires no internal wiring and allows maximum flexibility and ease of use
• Cobalt-free lithium iron phosphate (LFP) battery: Maximum safety, lifetime and performance
• Compatible with leading 1- and 3-phase inverters
• Highest safety standards such as VDE 2510-50
• Powerful emergency power functionality

Product advantages GoodWe ET Plus – GW8K-ET

• 8.0 kVA power 3-phase
• 8 kW emergency power output via separate output
• MPP tracker: 2, 380-850V
• 1 MC4 inputs per MPPT
• Battery connection for BYD high-voltage
• 1 x RS485
• Wi-Fi
• Webserver
• Potential-free contact available (programmable via PV-Master APP) (SG-Ready)
• Push-in terminals for the communication interfaces simplify installation
• DC overvoltage protection type 2 integrated
• Direct connection to ripple control receiver
• 3-phase smart meter included
• Dimensions: 516 x 415 x 180 mm (HxWxD)
• Protection category: IP66
• Weight: 24.0 kg

Included in the package

• BYD Battery-Box Premium HVS 10.2
• GoodWe ET Plus – GW8K-ET including smart meter
