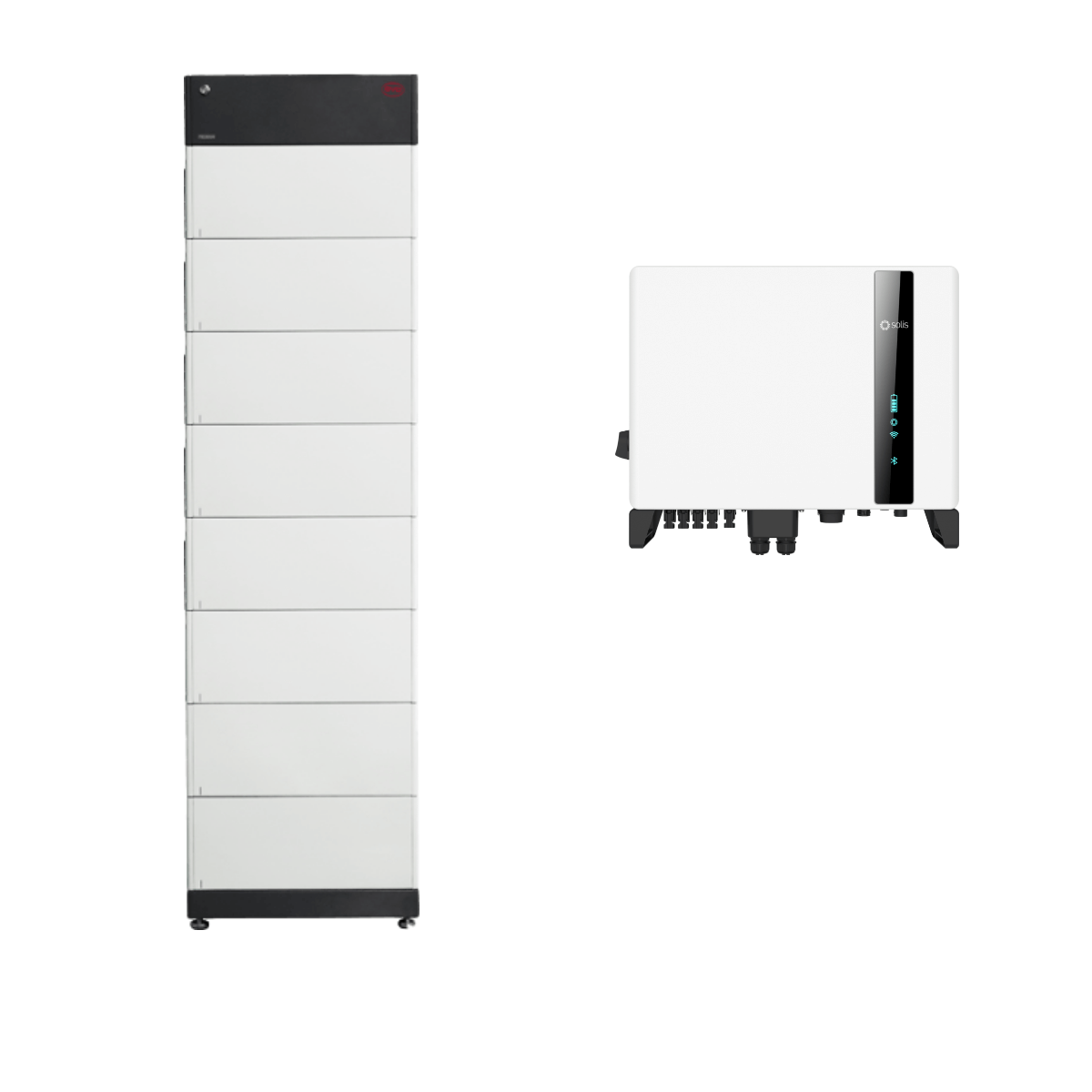

BYD Battery-Box Premium HVM 22.1 with Solis S6 3P-Hybrid – 10 kW

The Solis S6 3P-Hybrid – 10 kW with the BYD Battery-Box Premium HVM 22.1 storage package

Certification for the Solis inverter is expected by the end of 2022 for Austria!

The Solis hybrid inverter offers flexibility in module design with its 4 MPPT. With its high input current, it is compatible with modern high power modules. The Solis Hybrid Inverter has an integrated switching device for backup power. This allows selected loads to continue to be supplied with backup power in the event of a grid failure. The hybrid inverter is capable of solar recharging and black start capability. The usable storage capacity for this storage package can't be expanded.

Advantages BYD Battery-Box Premium HVM 22.1

• Usable capacity 22.08 kWh
• Self-supporting stacking concept (up to 8 units)
• Patented, wireless plug-in system
• Can be used as an emergency power system due to high discharge capacity
• Retrofit without time limit

Advantages Solis S6 3P-Hybrid – 10 kW

• Mains connection: 3-phase
• AC output: 10 kVA
• 10.0 kW emergency power output via separate output
• MPP Tracker: 4 with 1 string output each
• Max. short circuit current per MPPT: 24 A
• Max. input current: 16 A
• Communcations: CAN, RS485, Wi-Fi
• Incl. 1 m battery cable with MC4 connectors
• 3-phase smart meter with 3 current transformers included
• WiFi module is included in the scope of delivery
• Protection category: IP66
• Dimensions: 496 x 596 x 230 mm (HxWxD)
• Weight: 31.8 kg
• Warranty: 5 years

Included in the package:

• BYD Battery-Box Premium HVM 22.1
• Solis S6 3P-Hybrid – 10 kW
