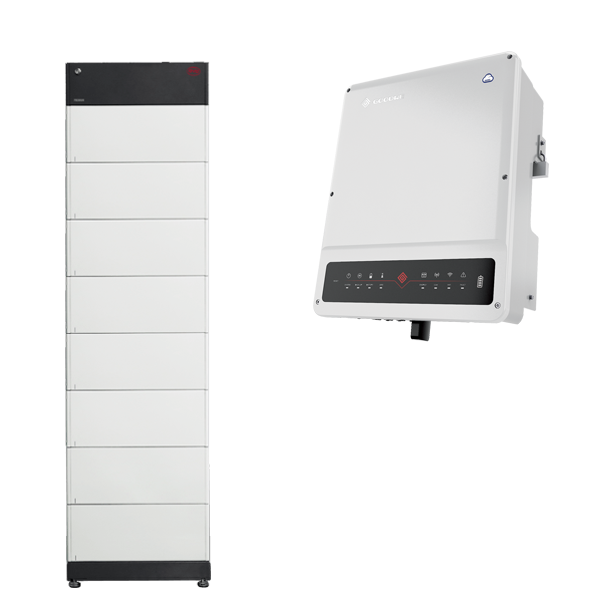

BYD Battery Box Premium HVM 22.1 high voltage with GoodWe ET Plus – GW10K-ET

The BYD Battery-Box Premium HVM 22.1 with the GoodWe ET Plus – GW10K-ET storage package

Flexible and scalable. With the BYD Battery-Box Premium, up to three battery towers can be connected to form a system. When it comes to charging and discharging power, however, BYD remains true to itself. Each battery can also deliver the nominal capacity as power. This makes the series well-suited for on-grid, on-grid plus backup and off-grid systems.

Thanks to the high battery charging currents, the GoodWe ET Plus can utilize the high battery power and also provides a 3-phase emergency power connection.

Product features BYD Battery-Box Premium HVM 22.1

• Usable capacity: 22.08 kWh
• Proven lithium iron phosphate technology
• Self-supporting stacking concept (up to 8 units)
• Patented, cable-free plug-in system
• Can be used as an emergency power system due to high discharge capacity
• Retrofitting possible without time limit

Product features GoodWe ET Plus – GW10K-ET

• 10.0 kVA output 3-phase
• 10.0 kW emergency power output via separate output
• MPP tracker: 2, 460-850V
• 1 MC4 inputs per MPPT
• Battery connector for BYD high voltage
• 1 x RS485
• Wi-Fi
• Web server
• Potential-free contact available (programmable via PV-Master APP) (SG-Ready)
• Push-in terminals for the communication interfaces simplify installation
• DC over-voltage protection type 2 integrated
• Direct connection to ripple control receiver
• 3-phase smart meter included
• Dimensions: 516 x 415 x 180 mm (HxWxD)
• Protection category: IP66
• Weight: 24.0 kg

Included in the package

• BYD Battery-Box Premium HVM 22.1
• GoodWe ET Plus – GW10K-ET including smart meter
