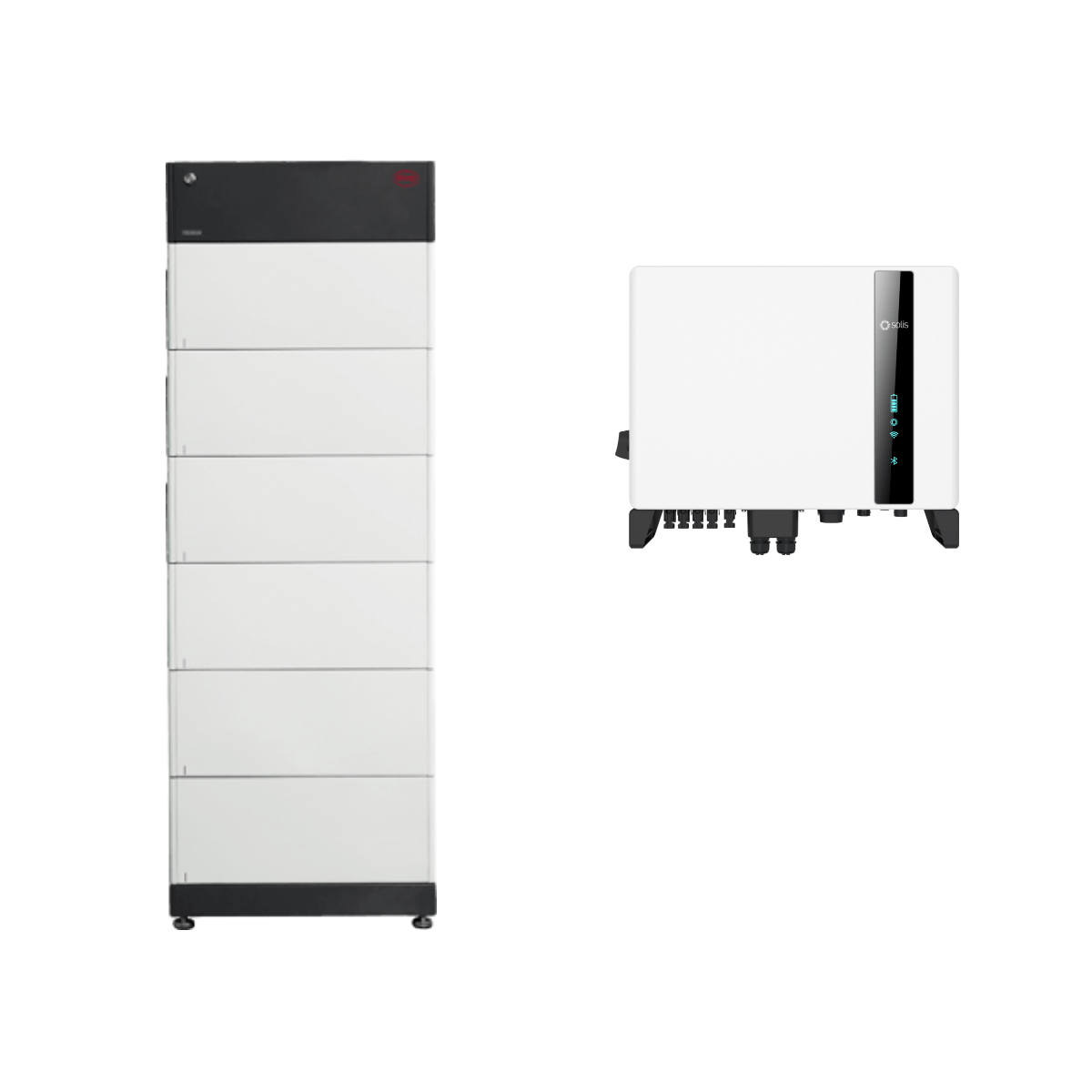

BYD Battery-Box Premium HVM 16.6 with Solis S6 3P-Hybrid – 10 kW

The Solis S6 3P-Hybrid – 10 kW with the BYD Battery-Box Premium HVM 16.6 storage package

Certification for the Solis inverter is expected by the end of 2022 for Austria!

The Solis hybrid inverter offers flexibility in module design with its 4 MPPT. With its high input current, it is compatible with modern high power modules. The Solis Hybrid Inverter has an integrated switching device for backup power. This allows selected loads to continue to be supplied with backup power in the event of a grid failure. The hybrid inverter is capable of solar recharging and black start capability. The usable storage capacity is expandable up to 22.08 kWh for this storage package.

Advantages BYD Battery-Box Premium HVM 16.6

• Usable capacity up to 16.56 kWh
• The storage package can be expanded up to 22.08 kWh. This requires the BYD HVS battery modules.
• Self-supporting stacking concept (up to 8 units)
• Patented, wireless plug-in system
• Can be used as an emergency power system due to high discharge capacity
• Retrofit possible for an unlimited period of time

Vorteile Solis S6 3P-Hybrid - 10 kW

• Mains connection: 3-phase
• AC power: 10 kVA
• 5.0 kW emergency power via separate output
• MPP tracker: 4 with 1 string output each
• Max. short circuit current per MPPT: 24 A
• Max. input current: 16 A
• Communication: CAN, RS485, Wi-Fi
• Incl. 1 m battery cable with MC4 connectors
• Incl. Wi-Fi module
• 3-phase smart meter with 3 current transformers
• Protection category: IP66
• Dimensions: 496 x 596 x 230 mm (HxWxD)
• Weight: 31.8 kg
• Warranty: 5 years

Included in the package:

• BYD Battery-Box Premium HVM 16.6
• Solis S6 3P-Hybrid – 10 kW
