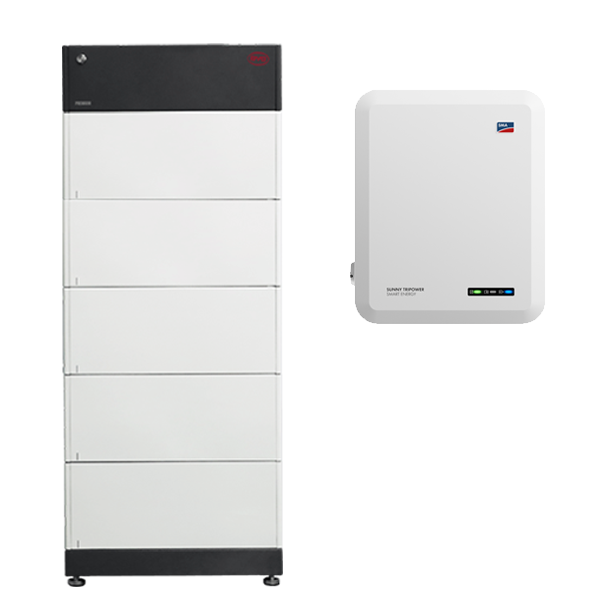

BYD Battery-Box Premium HVM 13.8 with SMA Hybrid STP 10.0 SE
| Art. Nr.: | 7244 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Inverter: | SMA Hybrid STP 10.0 SE |
| Net capacity: | 13.8 kWh |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | BYD Battery-Box Premium HVM 13.8 |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
7244
-
-
{ "id": "ca63fe68321f59f38c50f350b50ac08c", "item_brand": "", "item_name": "SMA Energy Meter-20", "item_id": "2837", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ca63fe68321f59f38c50f350b50ac08c", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "f851c43d16a85d83b49397b02bf44fe0", "item_brand": "", "item_name": "SMA Sunny Home Manager 2.0", "item_id": "2781", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f851c43d16a85d83b49397b02bf44fe0", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
SMA Hybrid STP 10.0 SE with BYD Battery-Box Premium HVM 13.8 storage package
Eligibility requirements: The Clean Deals offer is only valid for orders with a goods issue date no later than December 15, 2023
The SMA hybrid inverter has an integrated switching device for backup power. Selected loads can be connected to the backup power output, which are supplied with backup power in the event of a grid failure. You can use the Sunny Home Manager 2.0 to connect the system intelligently to a heat pump or wallbox. The Sunny Home Manager 2.0 also enables forecast-based charging and discharging of the battery. This means that the 70% feed-in rule can be elegantly implemented by not fully charging the storage system in the morning but only during the midday peak. The usable storage capacity for this storage package can be extended to 12.8 kWh.
Advantages BYD Battery-Box Premium HVM 13.8
- Usable capacity: 13.8 kWh
- The storage package can be expanded up to 22.08 kWh. This requires the BYD HVM battery modules.
- Self-supporting stacking concept (up to 8 units)
- Patented, wireless plug-in system
- Can be used as an emergency power system due to high discharge capacity
- Retrofitting possible for unlimited amount of time
Advantages SMA Hybrid STP 10.0 SE
- Mains connection: 3-phase
- AC rated power: 10 kVA
- Integrated switching device for backup power
- Max. power in emergency power mode: 12 kVA (max. 10 s)
- Also stores the energy from other PV inverters or a CHP unit
- Incl. 3 m battery cable and MC4 plugs
- Compatible with SMA Energy App, 360° App and Sunny Portal
- AC and DC overvoltage protection type 2 integrated
- Typical noise emissions: 30 dB (A)
- Protection category: IP 65
- Dimensions: 598 x 500 x 173 mm (H x W x D)
- Weight: 30.0 kg
- Warranty: 5 years (free extension to 10 years with online registration in the SMA Portal)
Included in the package
- BYD Battery-Box Premium HVM 11.0
- SMA Hybrid STP 10.0 SE
