BYD Battery Box Premium HVM 13.8 high voltage with GoodWe ET 15 – GW15K-ET

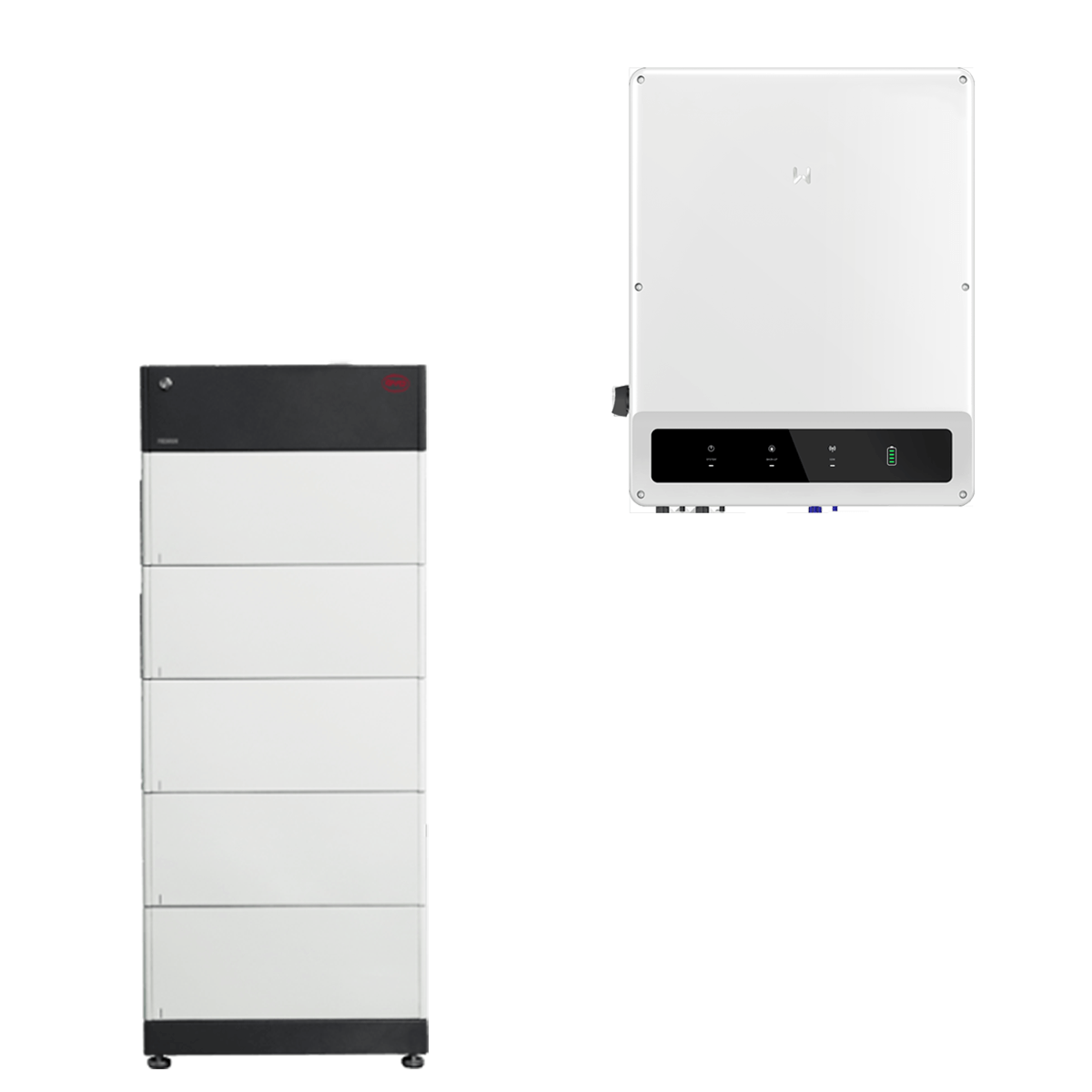

The BYD Battery-Box Premium HVM 13.8 with the GoodWe ET 15 – GW15K-ET storage package

The GoodWe ET 15-30 series is suitable for large PV projects in the residential and small projects in the commercial sector. In combination with the BYD HVM, the self-consumption and thus the energy self-sufficiency is increased. Each battery can also deliver the rated capacity as power. Thanks to the high battery charging currents, the GoodWe ET can utilize the high battery power. The hybrid inverter can continue to provide emergency power to selected loads in the event of a grid failure. In addition, the hybrid inverter is black start capable and can solar recharge.

Product advantages

• 3-phase smart meter already included in the ET series
• Integrated switching device for backup power in the hybrid inverter
• High battery safety standard VDE 2510-50
• No time restrictions for battery retrofitting
• Patented modular plug-in design requires no internal wiring and allows maximum flexibility and ease of use

Product features BYD Battery-Box Premium HVM 13.8

• Usable capacity: 13.8 kWh
• Max. output current: 40 A
• Rated voltage: 256 V
• Protection category: IP55
• Dimensions: 1461 x 585 x 298 mm (H x W x D)
• Weight: 205 kg

Product features ET 15 – GW15K-ET

• Mains connection: 3-phase
• AC output: 15.0 kVA
• 15.0 kW emergency power output via separate output
• MPP tracker: 2
• String connections per MPPT: 2
• Max. input current per MPPT: 30 A
• Max. emergency power current per MPPT: 38 A
• Communications: RS485, CAN, Wi-Fi, Bluetooth
• Potential-free contact available (programmable via SolarGo app) (SG-Ready)
• Wi-Fi module included
• Dimensions: 520 x 660 x 220 mm (H x W x D)
• Protection category: IP66
• Weight: 48.0 kg

Scope of delivery

• BYD Battery-Box Premium HVM 13.8 consisting of 1 BCU and 5 battery modules
• GoodWe ET 15 – GW15K-ET including 3-phase smart meter
