BYD Battery Box Premium 2 x HVM 13.8 high voltage with GoodWe ET 29.9 – GW29.9K-ET
| Art. Nr.: | 8895 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Inverter: | GW29.9K-ET |
| Net capacity: | 27.60 kWh |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | BYD Battery-Box Premium 2x HVM 13.8 |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8895
Description
The BYD Battery-Box Premium 2 x HVM 13.8 with the GoodWe ET 29.9 – GW29.9K-ET storage package
The GoodWe ET 15-30 series is suitable for large PV projects in the residential and small projects in the commercial sector. In combination with the BYD HVM, the self-consumption and thus the energy self-sufficiency is increased. Each battery can also deliver the rated capacity as power. Thanks to the high battery charging currents, the GoodWe ET can utilize the high battery power. The hybrid inverter can continue to provide emergency power to selected loads in the event of a grid failure. In addition, the hybrid inverter is black start capable and can solar recharge.
Product advantages
- 3-phase smart meter already included in the ET series
- Integrated switching device for backup power in the hybrid inverter
- High battery safety standard VDE 2510-50
- No time restrictions for battery retrofitting (however, the battery towers must always have the same capacity)
- Patented modular plug-in design requires no internal wiring and allows maximum flexibility and ease of use
Product features BYD Battery-Box Premium HVM 13.8
- Usable capacity: 13.80 kWh (two batteries 27.60 kWh)
- Max. output current: 40 A
- Rated voltage: 256 V
- Protection category: IP55
- Dimensions: 1461 x 585 x 298 mm (H x W x D)
- Weight: 205 kg (two batteries 410 kg)
Product features ET 29.9 – GW29.9K-ET
- Mains connection: 3-phase
- AC output: 29.9 kVA
- 29.9 kW emergency power output via separate output
- MPP tracker: 3
- String connections per MPPT: 2
- Max. input current per MPPT: 30 A
- Max. emergency power current per MPPT: 38 A
- Communications: RS485, CAN, Wi-Fi, Bluetooth
- Potential-free contact available (programmable via SolarGo app) (SG-Ready)
- Wi-Fi module included
- Dimensions: 520 x 660 x 220 mm (H x W x D)
- Protection category: IP66
- Weight: 54.0 kg
Scope of delivery
- BYD Battery-Box Premium 2 x HVM 13.8 consisting of 1 BCU and 5 battery modules
- GoodWe ET 29.9 – GW29.9K-ET including 3-phase smart meter
Downloads
Downloads
Videos
Videos
-
BYD Battery-Box Premium HVM&HVS Installation Guideline 20210308The YouTube video has been blocked due to the cookie settings.
-
Matching accessories
-

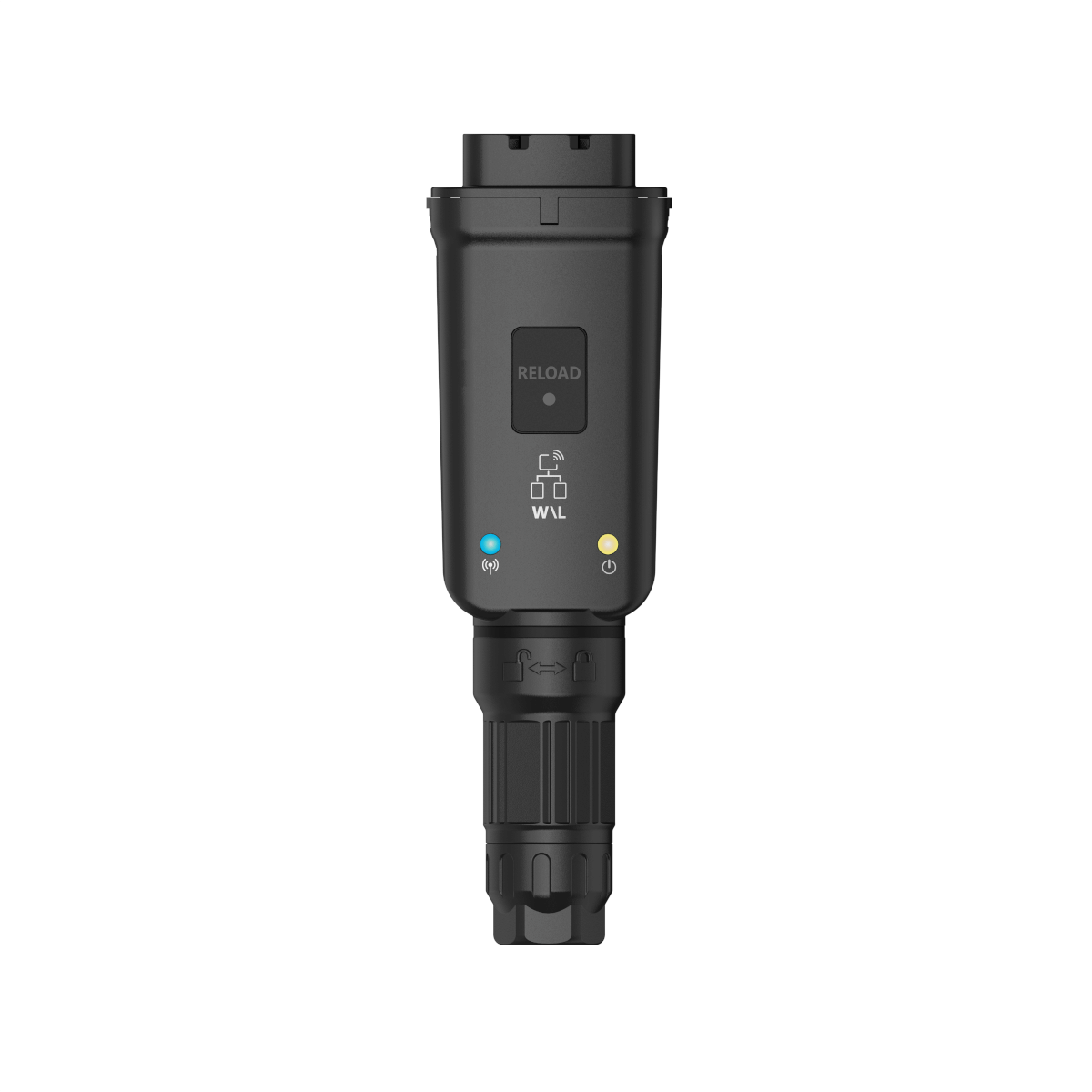

GoodWe Wi-Fi + LAN Kit-20- Type of manufacturer: WLA0000-01-00P
