APsystems EZ1-M 799 VA package for 2 modules

Micro inverter package with EZ1-M 799 VA from APsystems for 2 modules

The micro inverter EZ1-M with Wi-Fi capability from APsystems is perfect for balcony power plants with its 799 VA AC output. With its two MPP trackers, two PV modules can be connected. The high input current of 20 A makes it compatible with modern high-performance modules. The inverter communicates with the router via Wi-Fi. Monitoring can be implemented via an app. A direct Bluetooth connection with your smartphone is also possible. A 5 m AC cable with Schuko plug is included in the scope of delivery.

Advantages APsystems EZ1-M

• Mains connection: 230 V
• AC output: 799 VA
• Number of MPPTs: 2
• Max. input current per module: 20 A
• Max. short circuit current per module: 25 A
• MPPT voltage range: 28 – 45 V
• Operating voltage range: 16 – 60 V
• Protection category: IP 67
• Communications: Wi-Fi and Bluetooth
• Warranty: 12 years

Advantages EZ1-M AC cable

• Plug and play solution via Schuko plug
• Length: 5 m
• If a Wieland power socket is used, the earthed plug of the AC cable can be cut off. The warranty remains valid.

Scope of delivery

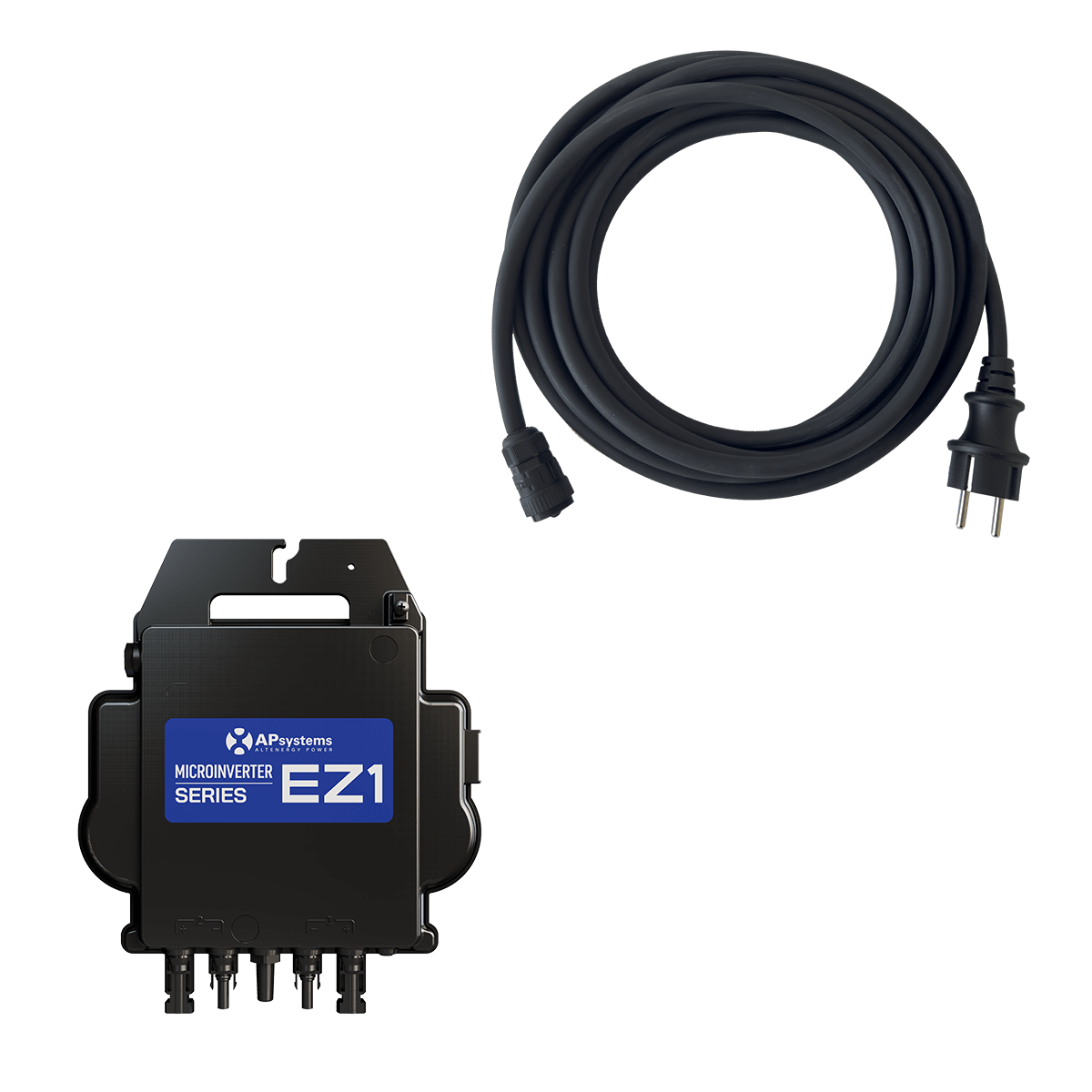

• 1 x EZ1-M micro inverter with 799 VA
• 1 x EZ1-M 5 m AC cable with Schuko plug
