Alumero landscape kit 2x6 concrete ALPIN
| Manufacturer Art. No.: | - |
|---|---|
| Art. Nr.: | 10315 |
| Type of roof: | Open space |
Prices are only visible to business customers upon successful registration.
- TIP
Available from 27.01.2025
Product number:
10315
Description
Alumero landscape kit 2x6 concrete ALPIN

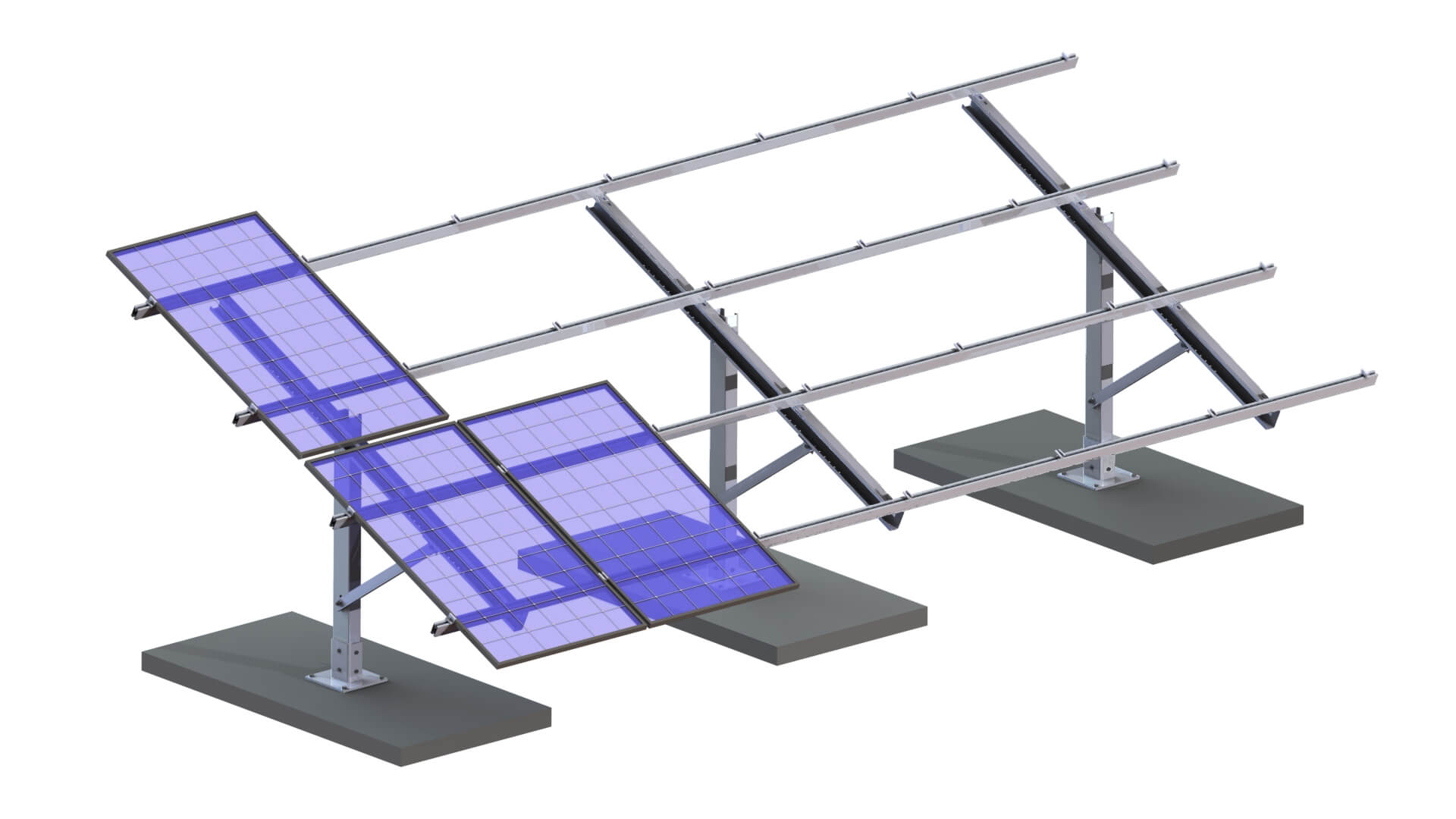

The Alumero landscape kit 2x6 concrete is the simplest method of realizing ground-mounted systems. Whether on concrete or ground, we have systems in 2x6, 2x12 and 2x20 module sizes. We have all sizes available in standard and alpine versions in the store. With the different sizes, open spaces of all shapes and sizes can be realized. The entire frame is delivered directly to you at once.
Product features
- Snow load 2.80 kN/m²
- Wind load 0.65 kN/m²
- Length 7.2 m
- Foot height 1.4 m
- Table width 2.75 m
- Compatible with Alumero center and end clamps
- Planned for modules with the sizes 1762x1134x30 mm and 1722x1134x30
Bolts/anchors for fastening the steel base in the concrete foundation are not included in the scope of delivery!
Alumero recommends at least 1.2 tons of concrete per upright/post (1m³ concrete = 2.4 – 2.6 tons)
-
