Alumero Landscape-Kit 2x20 rammed ALPIN

Manufacturer Art. No.: -
Art. Nr.: 10322
Type of roof: Open space
Prices are only visible to business customers upon successful registration.
  • TIP
Available from 30.01.2025
Product number: 10322
Prices are only visible to business customers upon successful registration.
  • TIP
Available from 30.01.2025
Product number: 10322
Description

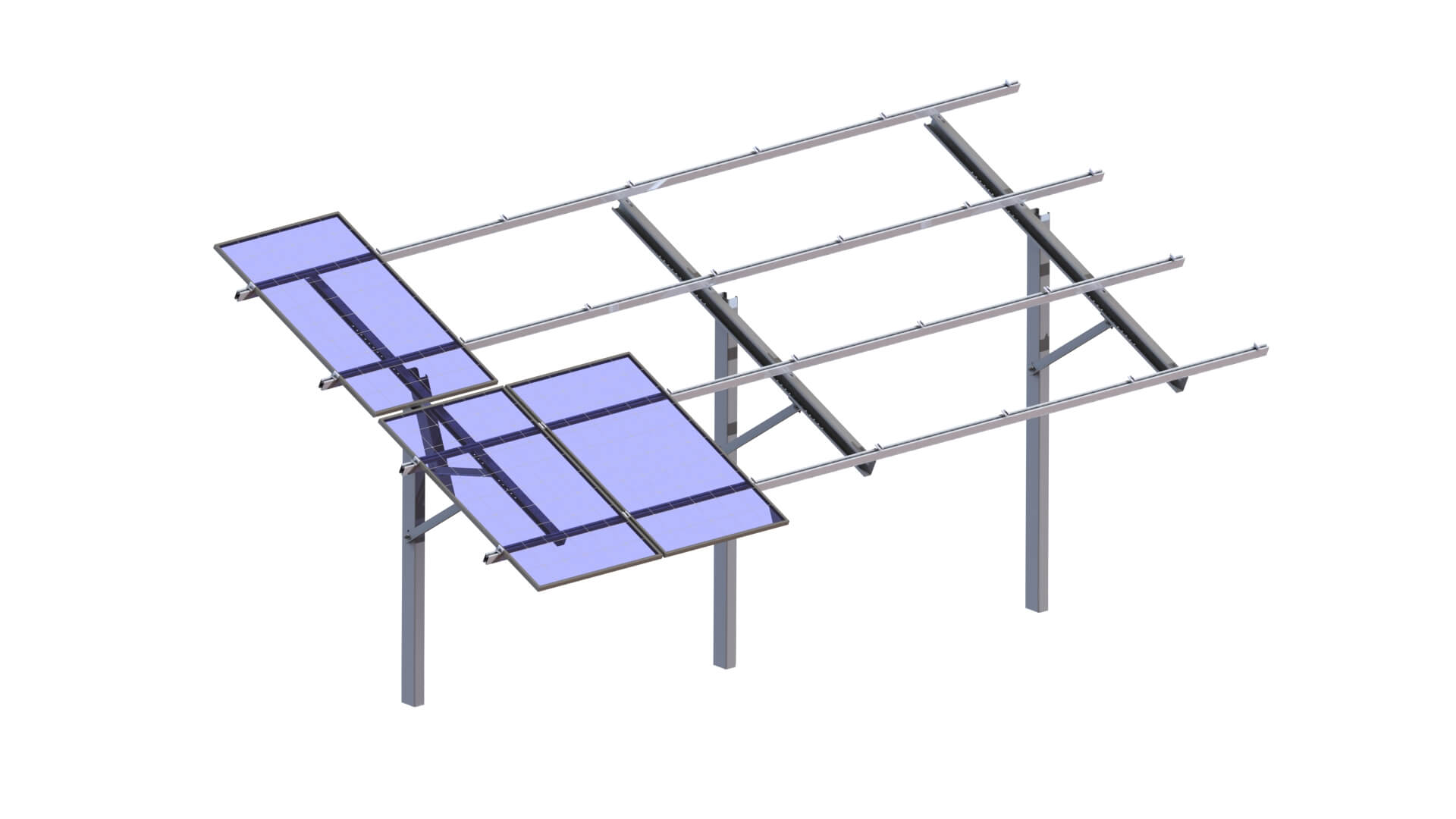

Alumero Landscape-Kit 2x20 rammed ALPIN

The Alumero Landscape-Kit 2x6, which is installed by ramming into the ground, is the easiest way to realize ground-mounted systems. Whether on concrete or in the countryside, we have systems in the sizes 2x6, 2x12 and 2x20 modules. All sizes are available in a standard and an alpine version in the store. With the different sizes, open spaces of all shapes and sizes can be realized. The entire frame is delivered directly to you at once.



Product features

  • Snow load 2.80 kN/m²
  • Wind load  0.65 kN/m²
  • Lenght 7.2 m
  • Base height 1.4 m
  • Table width 2.75 m
  • Compatible with Alumero center and end clamps
  • Planned for modules with the sizes 1762x1134x30 mm and 1722x1134x30

Alumero recommends at least 1.2 tons of concrete per upright/post (1m³ concrete = 2.4 – 2.6 tons)



  • Matching accessories

    • Available from stock
      { "id": "52d7e5abab7d545d8ef556c139b13e3d", "item_brand": "", "item_name": "Alumero middle clamp 2.1 Click", "item_id": "480", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "20", "shopware_id": "52d7e5abab7d545d8ef556c139b13e3d" } }
    • Available from stock
      { "id": "a533e81f98a35cd299e100c18e504cc2", "item_brand": "", "item_name": "Alumero End Clamp Click with Pin 30-42 mm", "item_id": "7369", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "20", "shopware_id": "a533e81f98a35cd299e100c18e504cc2" } }
Alumero Landscape-Kit 2x20 rammed ALPIN
Available from 30.01.2025
