Alumero Landscape-Kit 2x12 rammed ALPIN
| Manufacturer Art. No.: | - |
|---|---|
| Art. Nr.: | 10318 |
| Type of roof: | Open space |
Prices are only visible to business customers upon successful registration.
- New
Available from 02.01.2025
Product number:
10318
Description

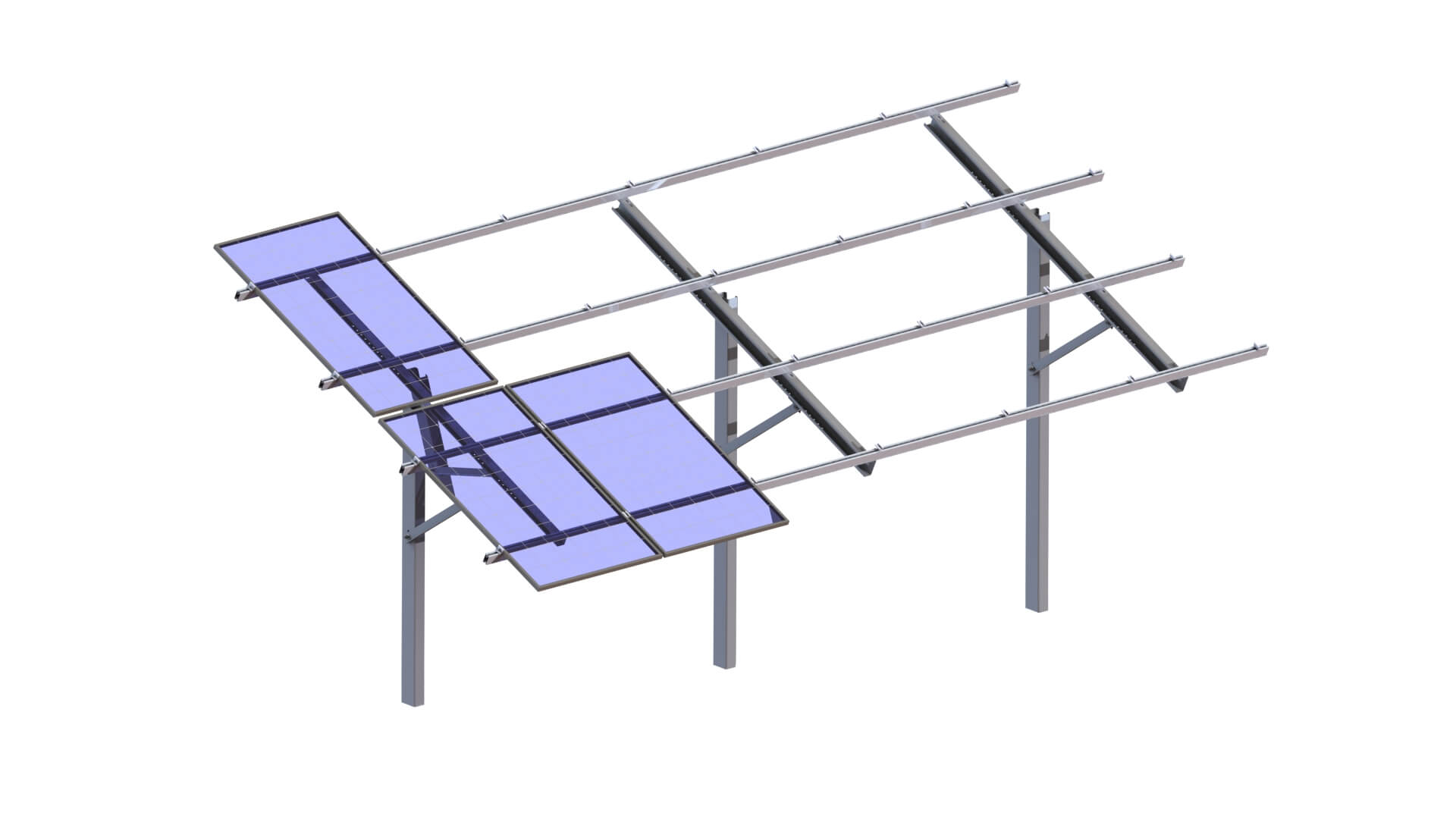

Alumero Landscape-Kit 2x12 rammed ALPIN

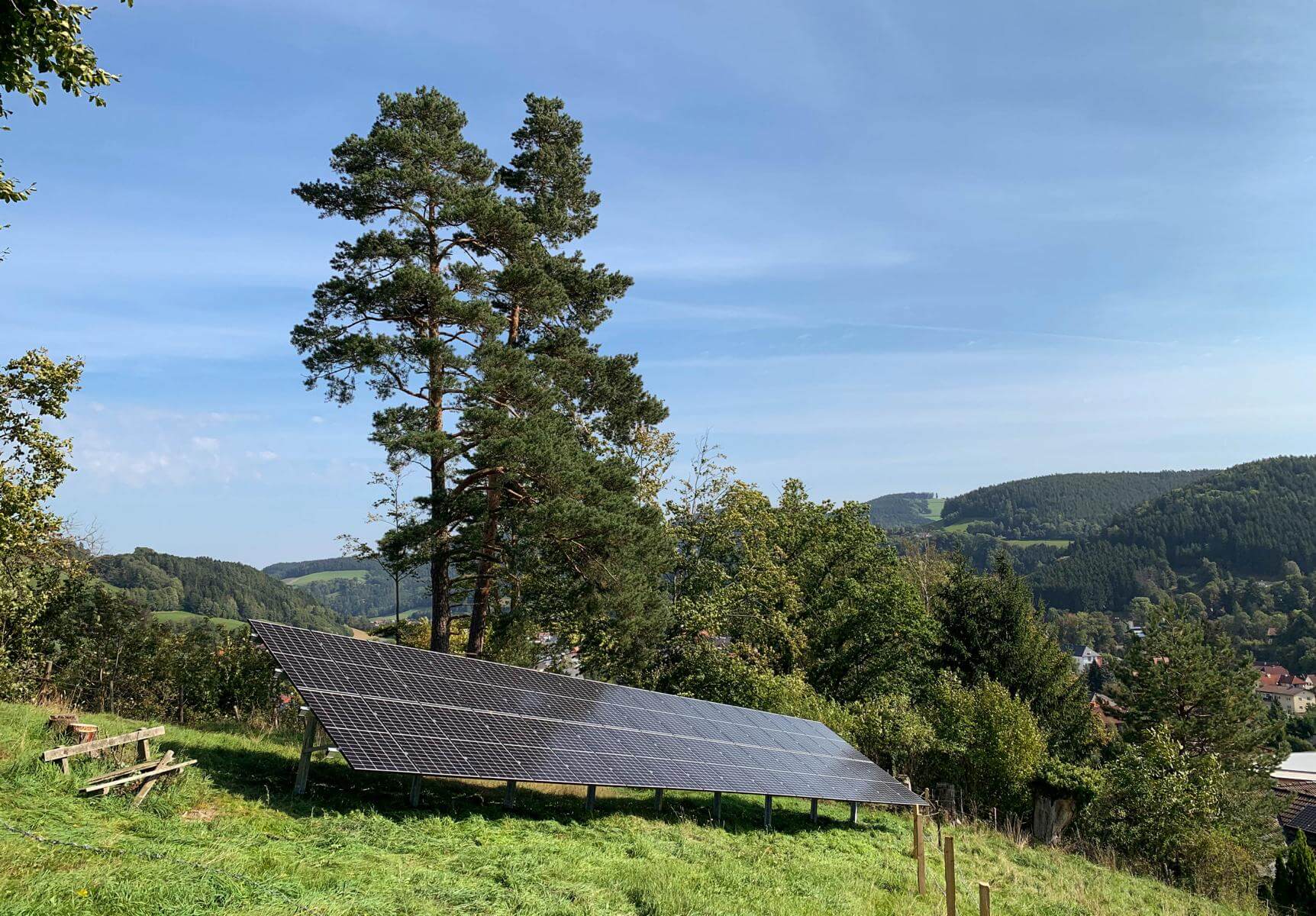

The Alumero Landscape-Kit 2x12, which is installed by ramming into the ground, is the easiest way to realize ground-mounted systems. Whether on concrete or in the countryside, we have systems in the sizes 2x6, 2x12 and 2x20 modules. All sizes are available in a standard and an alpine version in the store. With the different sizes, open spaces of all shapes and sizes can be realized. The entire frame is delivered directly to you at once.
Product features
- Snow load 2.80 kN/m²
- Wind load 0.65 kN/m²
- Lenght 7.2 m
- Base height 1.4 m
- Table width 2.75 m
- Compatible with Alumero center and end clamps
- Planned for modules with the sizes 1762x1134x30 mm and 1722x1134x30
Alumero recommends at least 1.2 tons of concrete per upright/post (1m³ concrete = 2.4 – 2.6 tons)
-
